Pneumatic Tubing
Ø O.D. pneumatic tubing is the current standard in pneumatics. In this category, you will find suitable tubing for all current fittings (such as QS, NPQM, NPQH etc.). For standard O.D. tubing, the outside diameter of the tube is specified as the tube size.
Ø Spiral tubing is used whenever the working lengths and tensile loads are different. Spiral tubing is a suitable accessory especially in combination with pneumatic tools (such as blow guns).
Ø Optimal flow conditions thanks to smooth inner walls and rigidity characterise the compressed air piping from Festo. It therefore is an alternative to pneumatic tubing.

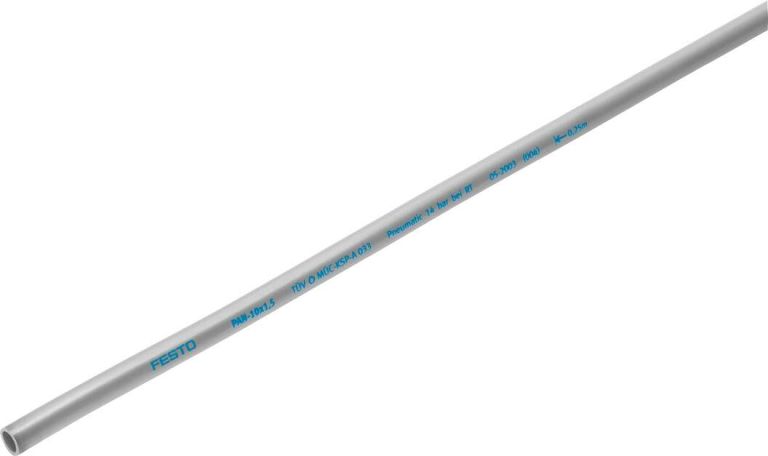

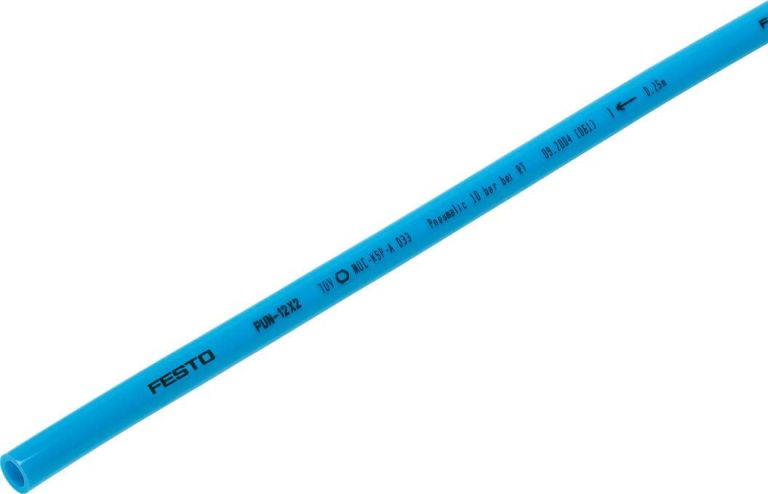

Ø Standard Pneumatic Tubing PUN, PUN-H, PUN-DUO, PAN, PEN, PTFEN, PUN-H-F

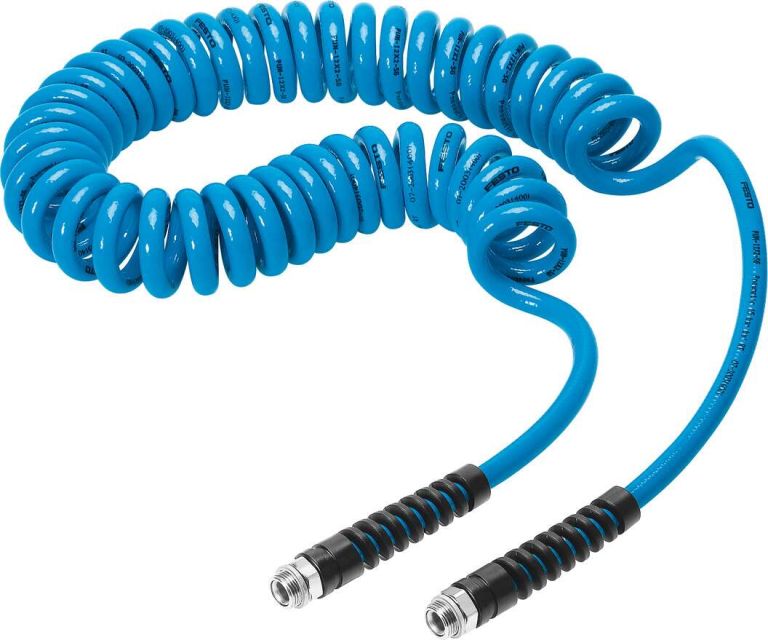

Ø Spiral Pneumatic Tubing PPS, PUN-S, PUN-S-DUO, PUN-SG

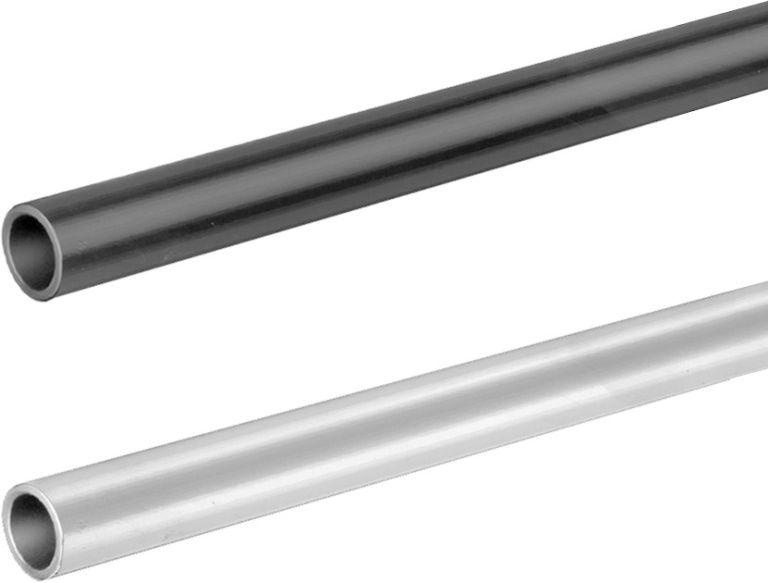

Ø Plastic-coated metal tube PM, PQ-AL, PQ-PA
Ø Polyurethane, aluminium
Ø High resistance to microbes and hydrolysis
Ø Food grade
Ø Suitable for use with energy chains
Ø Cleanroom compatible combination with click fitting NPKA
Ø Also available as DUO plastic tubing
Ø Operating medium: compressed air, vacuum, water
Ø Highly resistant to microbes and hydrolysis
Ø Suitable for use in the food industry
Ø Outside diameter: 2 ... 16 mm
Ø Internal diameter: 2.1 ... 11 mm
Ø Temperature-dependent operating pressure: -.95 ... 10 bar
Ø Ambient temperature: -35 ... 60° C
Ø Operating medium
- Compressed air
- Vacuum
- Water
